Realtime Weather Monitoring

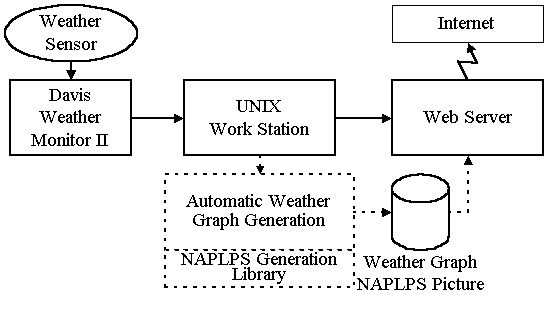

System Profile

• Reading data from weather sensor every one minute.
• Generating NAPLPS picture data of weather graph from stored data every five minutes.
• Generated NAPLPS picture data is linked to Web server for reference in a web page.

Equipments

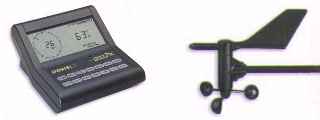

• Weather Monitor II manufactured by Davis Instruments.

An appearance of weather sensor installed outside.

Displaying Graph

• Temperature, humidity, wind speed, barometer and rainfall trends are plotted against time axis of 24 hours.
• The graph is updating by new value every five minutes.

Realtime weather graph of past 24 hours ( NAPLPS Picture )

The NAPLPS Viewer Plugin is required to view NAPLPS pictures.
